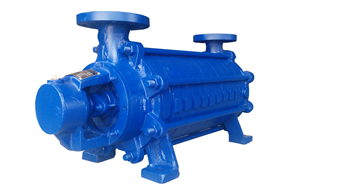

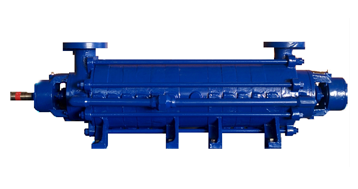

PN High Pressure Horizontal Multistage Pumps | High-Pressure Pump Manufacturer India

Auro Pumps’ PN High Pressure Horizontal Multistage Pumps are engineered for demanding applications requiring high pressure and flow. With capacities up to 90 m³/h and heads up to 450 meters, these pumps are designed to handle pressures up to 50 bars and temperatures up to 175°C. Manufactured as per ISO 2858, ISO 5199, and DIN 24256 standards, they are suitable for various industrial applications.

Technical Detail
M.O.C
Application

Capacity up to 90 m³/Hr
Total Head up to 450 meters
Maximum Pressure up to 50 bars
Maximum temperature 175^oC
Operating frequency of 50Hz & 60Hz
Manufactured as per ISO 2858, ISO 5199 & DIN 24256
Gland packed pumps available.
Arrangement for regular/balance mechanical seal on both, Suction & discharge sides available.

Available in CF8, CF8M, Cf3, CF3M, A-20, R-55, H-B, H-C, CZ100, CA6NM, CD4MCu and other special Alloys.

Ideal for:

Steam Boilers
High-pressure fluid transfers
LPG bottling plants
Boiler feed water systems
Firefighting systems
Industrial water supply
Pressure boosting systems
