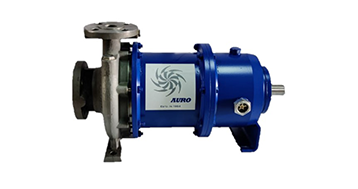

- Standard Centrifugal chemical process pumps with magnetic coupling design
- Separation of liquid containing areas and atmosphere by means of a Containment Shell
- Standard product lubricated Silicon Carbide (SSiC) bearing design with optional custom material Dry-run protection bearings available
- Capacity up to 300 m3/hour
- Head up to 150 meters
- Temperature range from -50°C to 250°C. Higher temperature applications details provided on request
- Operating frequency of 50Hz & 60Hz.
- Manufactured as per ISO 2858
- Option of closed, semi-open and open impeller available
- Standard bearing support design with optional closed couple design available
- Jacketed Volute casing & Containment shell bracket available
Available in CI, SGI, Bronze, CS, CF8, CF8M, CF3, CF3M, A-20, R55,H-B, H-C, CZ100, CA6NM, CD4MCu and other special alloys.
Ideal for:
-
Chemical & solvent industries
-
Steel & power plants
-
Petrochemical & pharma plants
-
Molten salt loop systems & thermal energy storage
-
Molten sulfur, sulfuric acid & acid handling
-
Industries needing non-leak, contamination-free pumping
